Overview

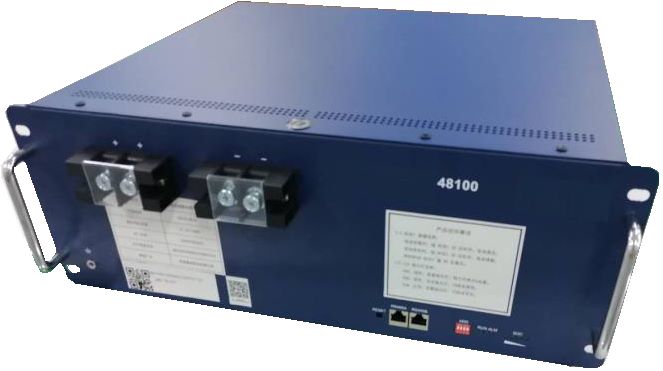

LFP48V Series is Lithium iron phosphate battery module which designed for Telecom and Solar System
application,This batteries module integrated with intelligent BMS inside, has big advantages on safety,
cycle life, energy density, temperature range and environmental protection.
Battery Module application,This batteries module integrated with intelligent BMS inside, has big advantages on safety,
cycle life, energy density, temperature range and environmental protection.
The battery module consists of single LFP cells, wire, BMS and metal container.
● Packed with high performance LFP single cell, long life, safety and wide temperature range
● High energy density, small size, light weight, no pollution;
● Packing with single cell container, fire retardant wire and copper connecting bar, stable and safe.
● Built-in BMS, with battery voltage, current, temperature and health management.
● LED indicate the battery SOC and operating status.
● metal module container rack, simple installation and expand capacity by parallel.
● Flexible customization of dimensions
● 10 years design life, Stable performance, maintenance free.
|
Model
|
Nominal
capacity （AH) |
Nominal
voltage (V) |
Nominal
Energy (Wh) |
Max.
Discharge (A) |
Max.
charge (A) |
Dimension(mm)
L*W*H |
Weight
(kg) |
Remarks
|
| LFP48V10AH | 10 | 51.2 | 512 | 10 | 5 | 445*285*45 | 8 |
Built-in BMS
|
| LFP48V20AH | 20 | 51.2 | 1024 | 20 | 10 | 445*285*90 | 14.5 | Built-in BMS |
| LFP48V30AH | 30 | 51.2 | 1536 | 30 | 15 | 445*370*90 | 23 | Built-in BMS |
| LFP48V40AH | 40 | 51.2 | 2048 | 40 | 20 | 445*430*90 | 27 | Built-in BMS |
| LFP48V50AH | 50 | 51.2 | 2560 | 50 | 25 | 445*450*135 | 31 | Built-in BMS |
| LFP48V75AH | 75 | 51.2 | 3840 | 75 | 30 | 445*500*180 | 40 | Built-in BMS |
| LFP48V100AH | 100 | 51.2 | 5120 | 100 | 50 | 445*500*180 | 65 | Built-in BMS |
| LFP48V200AH | 200 | 51.2 | 10240 | 100 | 50 | 445*760*180 | 128 | Built-in BMS |
